Optically isolated digital I/Os.
-
MODBUS RTU on RS-485.
-

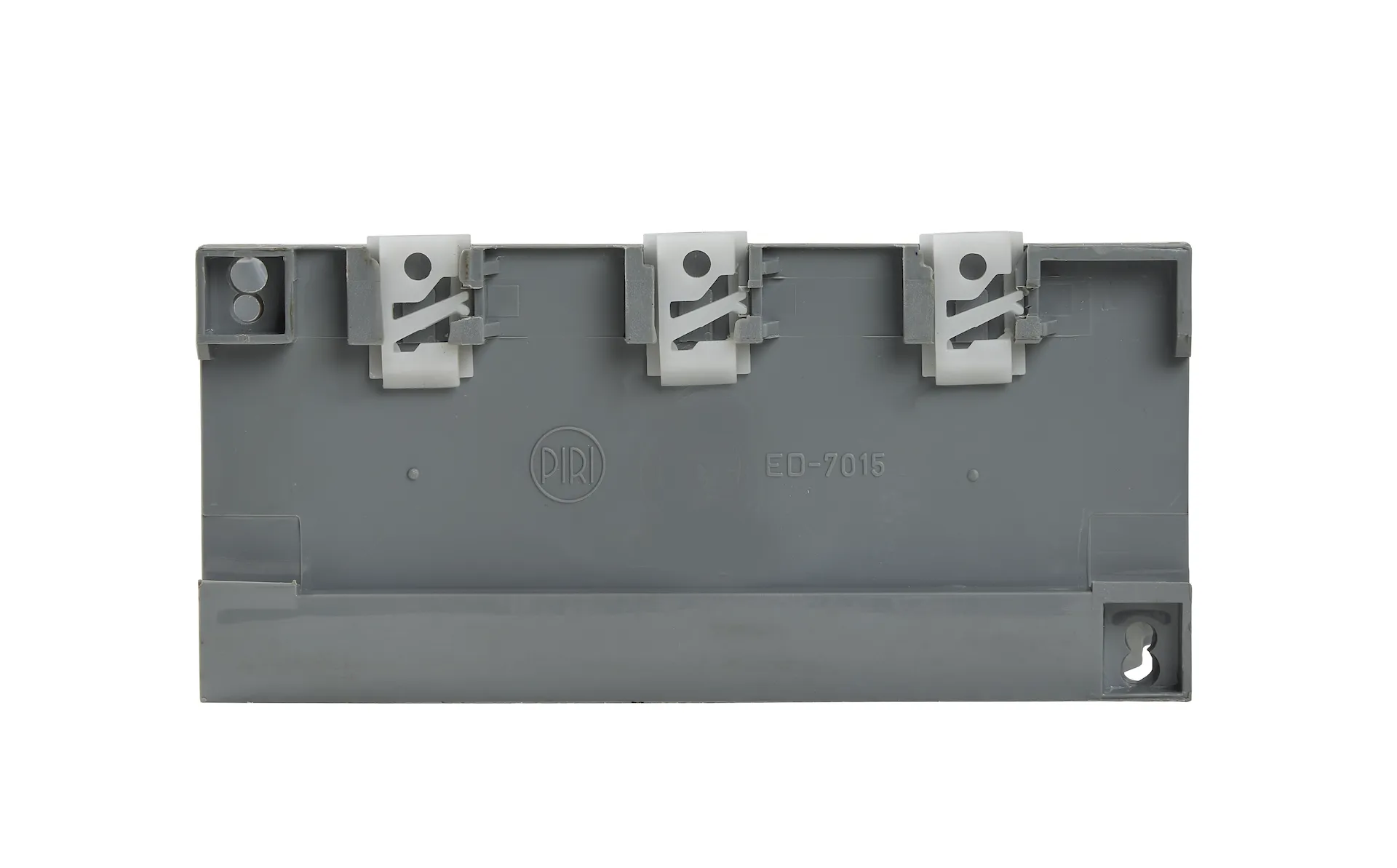

DIN-rail ABS mount.
-
16 inputs (potential-free or 24 VDC).
-
8 open-collector outputs.
-
Power, system OK, Tx, Rx, and I/O status LEDs.
-
24 VDC excitation required for inputs.
-
230 VAC module power.
-
DIP switch baud rate: 9600/19200 bps.
-
Polling time: 10 ms.
-
Operating temp: 5–55 °C.
